Office Series
JC6 & JC7
Professional
Pharmaceutical
Office Series   JC6 & JC7

Features

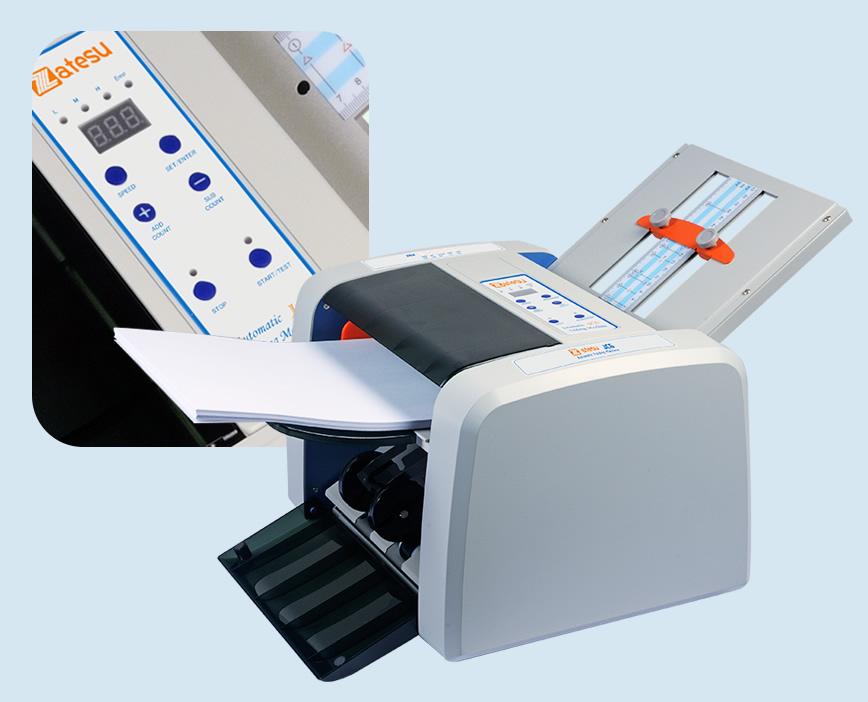

JC6
  • Streamline Outlook . Innovative Design
  • LED Control Panel . Simple To Operate
  • Ascending and Descending Batch Counting Function
  • Automatic Fault Detection and Safety Features
  • Adjustable Speed and Separator Pressure
  • Fanned out paper stacks . neat and tidy

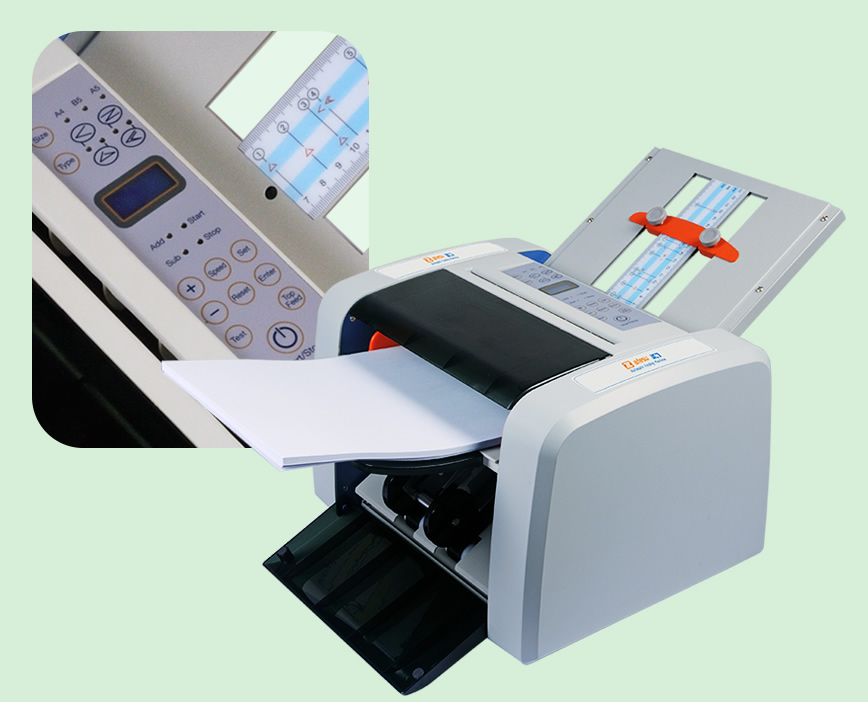

 JC7
  • Streamline Outlook . Innovative Design
  • Innovative and Intuitive operating system
  • Manual 3-Sheet Paper Folding Option
  • Automatic Feed Table Mechanism
  • Ascending and Descending Batch Counting Function
  • Automatic Fault Detection and Safety Features
  • Adjustable Speed and Separator Pressure
  • Fanned out paper stacks . neat and tidy
Video

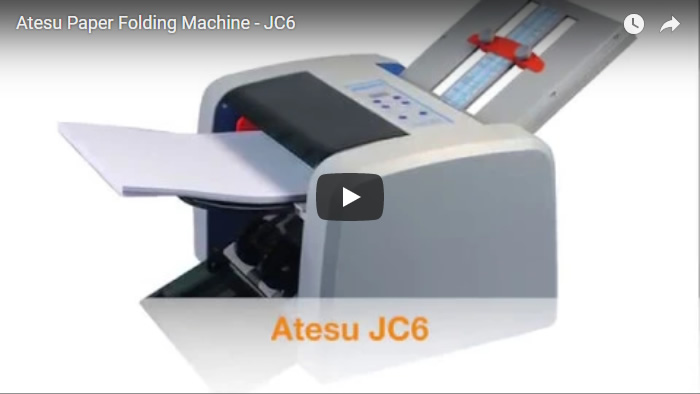

JC6 Video

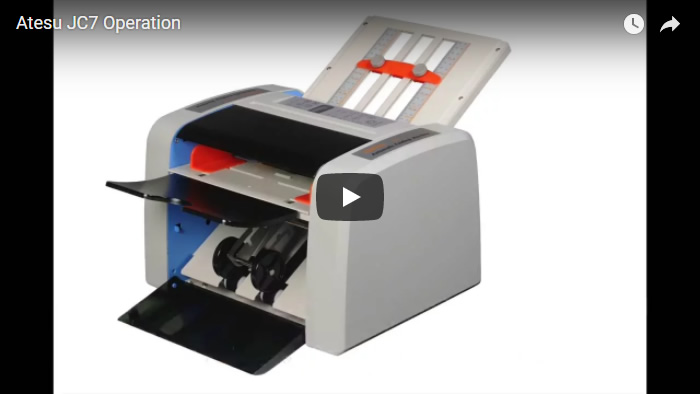

JC7 Video

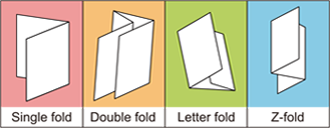

Fold Style
Specifications
Model JC6
Paper Size A5 - A4
Paper Weight 60 - 90 gsm
Fold Table
Capacity 		135 sheets(64gsm)
Fold Plate
Adjustment 		Manual with fold style
guide on ruler
Speed 3-Speed
Selection 5,000pcs/hr
Digital
Counter 		3 digits
3-Sheet
Manual Feed		 without
Power 100-240V 50/60Hz
Machine Size 530(L)x365(W)x335(H)
mm
Machine
Weight 		about 10kg
Model JC7
Paper Size A5 - A4
Paper Weight 60 - 90 gsm
Fold Table
Capacity 		135 sheets(64gsm)
Fold Plate
Adjustment 		Manual with digital
display guide
Speed Variable 5,000pcs/hr
Digital
Counter 		8x2 digits
3-Sheet
Manual Feed		 with
Power 100-240V 50/60Hz
Machine Size 530(L)x365(W)x335(H)
mm
Machine
Weight 		about 10kg
Remark : The specifications, characteristics and technical data described in the datasheet are
                subject to change without prior notice.
