Professional Series

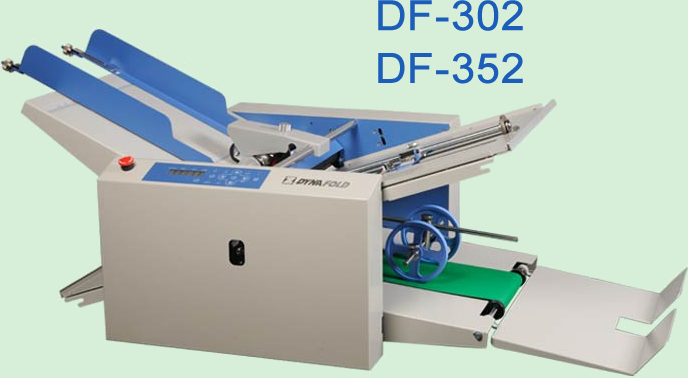

2-Plate Paper Folding Machines DF-302 DF-352
Features
  • Low noise, flat belt drive system
  • New structural design, with fixed Primary Roller, all other rollers pressure adjustable.
  • Plate stop easily adjustable, with micro-adjust in both lateral and angular direction
  • Simple adjustment for different paper thickness,ensuring single feed each time
  • CPU-controlled motor for longer durability
  • User friendly digital control
  • Integrated batch-counting function
  • Vertical Stacker option available
Video

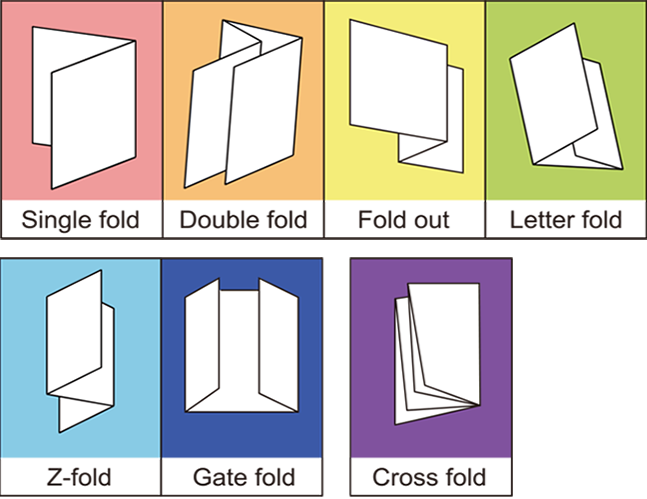

Fold Style
Specifications
Model DF-302
Paper Size
(W x L)		 Min:(60-90)x100 mm
Max:300x500 mm
Paper Weight 45 - 150 gsm
Smallest Fold Size 45mm
(24mm with Vertical Stacker)
(Optional Accessories)
Fold Plate 2 Plates
Fold Style 6 Styles
Speed 10,000-12,000pcs/hr
(70gsm, A4, Single Fold)
Counter 6-Digit Counter with
Integrated Control Panel
Standard Collecting Device Conveyor Belt
Power 240V 50Hz/100V 60Hz
Machine Size 1100(L)x495(W)x455(H)mm
Machine
Net Weight 		about 40.2kg
Model DF-352
Paper Size
(W x L)		 Min:(60-90)x100 mm
Max:350x540 mm
Paper Weight 45 - 150 gsm
Smallest Fold Size 45mm
(24mm with Vertical Stacker)
(Optional Accessories)
Fold Plate 2 Plates
Fold Style 6 Styles
Speed 10,000-12,000pcs/hr
(70gsm, A4, Single Fold)
Counter 6-Digit Counter with
Integrated Control Panel
Standard
Collecting Device		 Conveyor Belt
Power 240V 50Hz/100V 60Hz
Machine Size 1100(L)x540(W)x455(H)mm
Machine
Net Weight 		about 43.0kg
Remark : The specifications, characteristics and
                technical data described in the datasheet
                are subject to change without prior notice.
