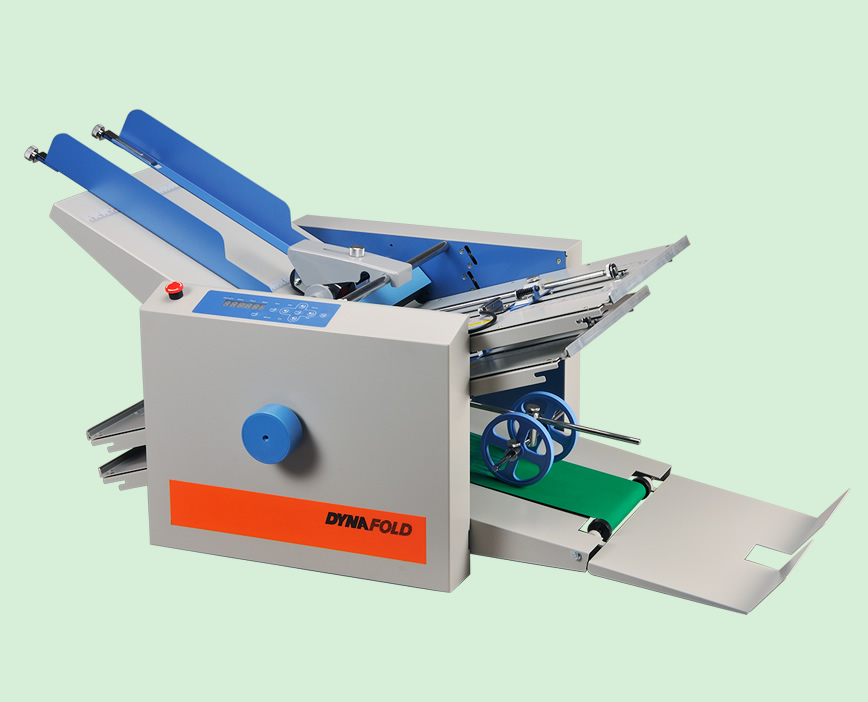

Professional Series   4-Plate Paper Folding Machines DF-304 DF-354
Features
  • Low noise, flat belt drive system
  • New structural design, with fixed Primary Roller, all other rollers pressure adjustable.
  • Plate stop easily adjustable, with micro-adjust in both lateral and angular direction
  • Simple adjustment for different paper thickness, ensuring single feed each time
  • CPU-controlled motor for longer durability
  • User friendly digital control
  • Integrated batch-counting function
  • Vertical Stacker option available
Fold Style
Specifications
Model DF-304
Paper Size
(W x L)		 Min:(60-90)x100 mm
Max:300x500 mm
Paper Weight 45 - 150 gsm
Smallest Fold Size 45mm
(24mm with Vertical Stacker)
(Optional Accessories)
Fold Plate 4 Plates
Fold Style 16 Styles
Speed 10,000-12,000pcs/hr
(70gsm, A4, Single Fold)
Counter 6-Digit Counter with Integrated Control Panel
Standard Collecting Device Conveyor Belt
Power 240V 50Hz/100V 60Hz
Machine Size 1100(L)x495(W)x530
(H)mm
Machine
Net Weight		 about 50.3kg
Model DF-354
Paper Size
(W x L)		 Min:(60-90)x100 mm
Max:350x540 mm
Paper Weight 45 - 150 gsm
Smallest Fold Size 45mm
(24mm with Vertical Stacker)
(Optional Accessories)
Fold Plate 4 Plates
Fold Style 16 Styles
Speed 10,000-12,000pcs/hr
(70gsm, A4, Single Fold)
Counter 6-Digit Counter with Integrated Control Panel
Standard Collecting Device Conveyor Belt
Power 240V 50Hz/100V 60Hz
Machine Size 1100(L)x540(W)x530
(H)mm
Machine
Net Weight		 about 54.0kg
Remark : The specifications, characteristics and technical data described in the datasheet are
                subject to change without prior notice.
