DF-S304V DF-S306V
Pharmaceutical Series   DF-S304V DF-S306V

Features
  • Low noise, flat belt drive system
  • New structural design, with fixed Primary Roller, all other rollers pressure adjustable.
  • Plate stop easily adjustable, with micro-adjust in both lateral and angular direction
  • Simple adjustment for different paper thickness, ensuring single feed each time
  • CPU-controlled motor for longer durability
  • User friendly digital control
  • Integrated batch-counting function
  • Separable Vertical Stacker to collect leaflets neatly.
  • Smallest Possible Fold : 18mm !
Video

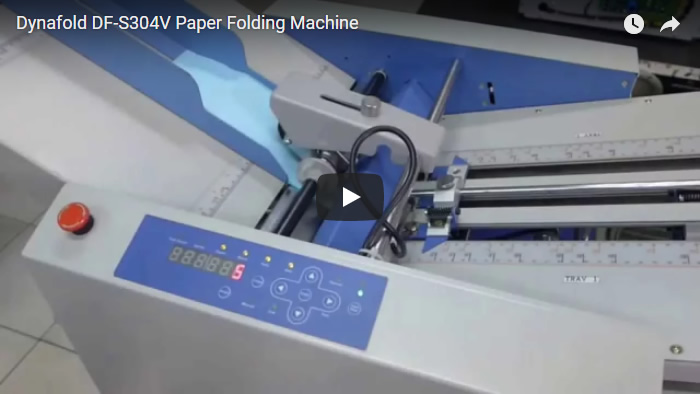

DF-S304V Video

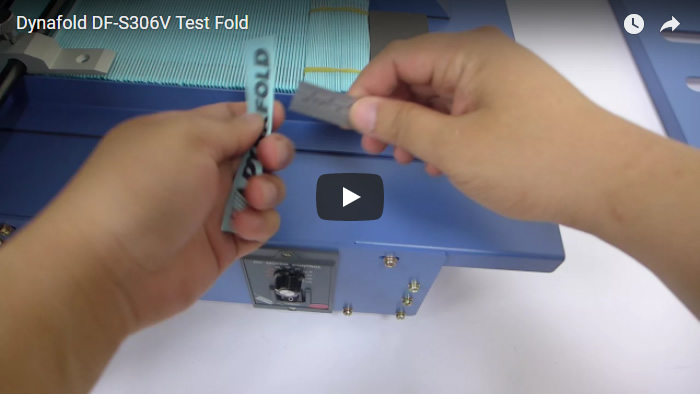

DF-S306V Video

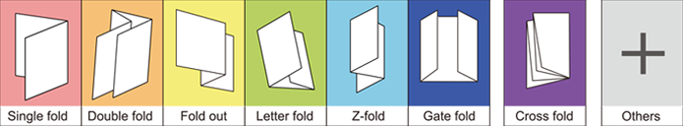

Fold Style
Specifications

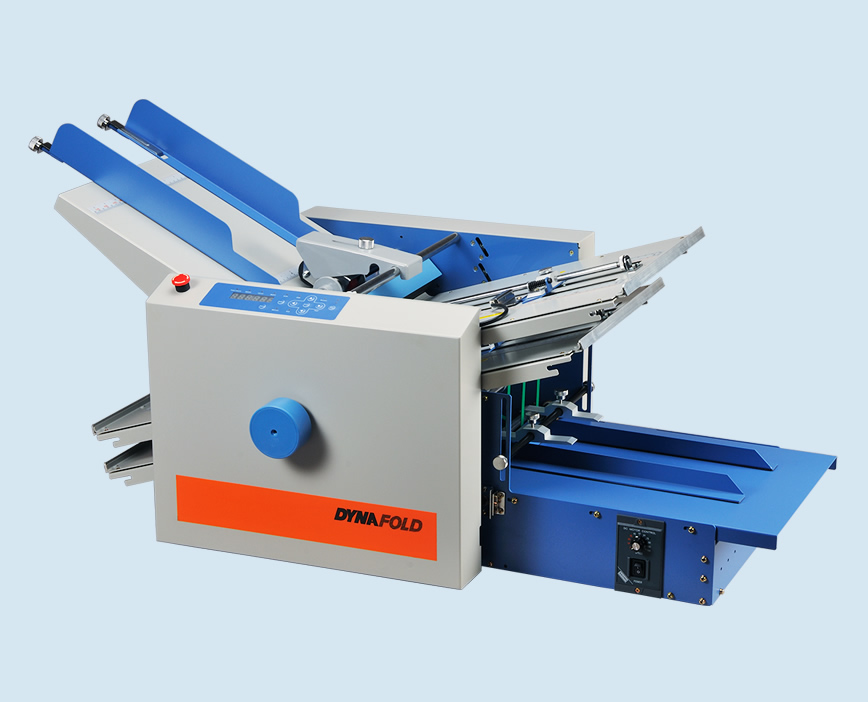

Model DF-S304V
Paper Size
(W x L)		 Min:(60-90)x100 mm
Max:285x500 mm
Paper Weight 45 - 150 gsm
Smallest Fold Size 18 - 20mm
Fold Plate 4 Plates
Fold Style 16 Styles
Speed 10,000-12,000pcs/hr
(70gsm, A4, Single Fold)
Counter 6-Digit Counter with
Integrated Control Panel
Standard Collecting Device Vertical Stacker
Power 240V 50Hz/100V 60Hz
Machine Size 1055(L)x495(W)x530
(H)mm
Machine
Net Weight		 about 55.8kg

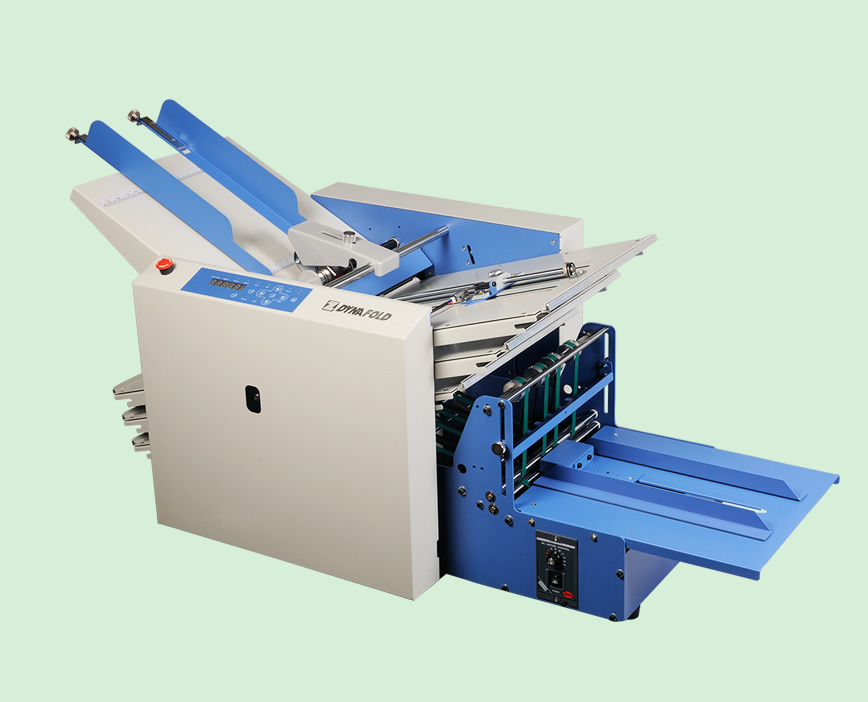

Model DF-S306V
Paper Size
(W x L)		 Min:(60-90)x100 mm
Max:285x500 mm
Paper Weight 45 - 150 gsm
Smallest Fold Size 18 - 20mm
Fold Plate 6 Plates
Fold Style >16 Styles
Speed 10,000-12,000pcs/hr
(70gsm, A4, Single Fold)
Counter 6-Digit Counter with
Integrated Control Panel
Standard Collecting Device Vertical Stacker
Power 240V 50Hz/100V 60Hz
Machine Size 1055(L)x495(W)x565
(H)mm
Machine
Net Weight		 about 64.0kg
Remark : The specifications, characteristics and technical data described in the datasheet are
                subject to change without prior notice.
